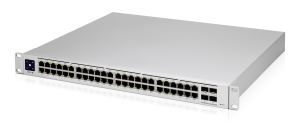

Image for illustration only. Specifications cannot be guaranteed.
» See More Product Details |
|
 |
8x Gigabit RJ45 802.3bt PoE ports
40x Gigabit RJ45 802.3at PoE ports
4x 10G SFP ports
Layer 2 and Layer 3 features
600W maximum PoE power
<..
>>> Read More
8x Gigabit RJ45 802.3bt PoE ports
40x Gigabit RJ45 802.3at PoE ports
4x 10G SFP ports
Layer 2 and Layer 3 features
600W maximum PoE power
UniFi SmartPower RPS DC input
Near-silent cooling
1.3in touchscreen display
Managed by UniFi Network Controller
SFP ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 48
Power over Ethernet (PoE) support: Y
Power over Ethernet plus (PoE ) ports quantity: 40
Total Power over Ethernet (PoE) budget: 600 W
Power over Ethernet (PoE) power per port: 64 W
Authentication type: IEEE 802.1x,RADIUS
DHCP features: DHCP server
Rack mounting: Y
Form factor: 1U
Colour of product: Silver
VLAN support: Y
VLAN support: Y
Certification: Y
Full duplex: Y
Switching capacity: 176 Gbit/s
Jumbo frames support: Y
10G support: Y
Forwarding rate: 130.944 Mpps
Throughput: 88000 Mpps
Static route: Y
Certification : CE, FCC, IC
Rack mounting: Y
Form factor: 1U
LED indicators: Activity,Link,PoE,Speed,System
Colour of product: Silver
Number of power supplies: 1
Power over Ethernet (PoE) Support: Y
Input current: 11.54 A
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
DC input voltage: 44 - 57 V
Power supply included: Y
LED indicators: Activity,Link,PoE,Speed,System
Full duplex: Y
Networking standards: IEEE 802.3af,IEEE 802.3at
Flow control support: Y
Port mirroring: Y
Jumbo Frames support: Y
Auto MDI/MDI-X: Y
Spanning tree protocol: Y
VLAN support: Y
10G support: Y
Auto-sensing: Y
Operating relative humidity range: 10 - 90%
Operating temperature range (T-T): -5 - 40 °C
